Homemade Log Milling Tutorial



Due to popular demand I have videoed my process of how I go about turning a small log into lumber.  In this sequence I am using a 6" diameter sycamore log, which is smaller than I usually do, but honestly it was the best log that was at the dump.  First I drive two screws into the side of the log to hold the log to the sled.  Note that I am using a scrap piece of wood as a spacer to lift the log up above the clamps that are holding the jig to the bandsaw table.

When I build a new and improved version I will build the auxiliary fence wide enough so the clamps will not interfere.  This jig is made from old particleboard drawer, and the frame of a old screen door.  The sled (which also doubles as a resaw fence) slides along a track. The base can be adjusted for drift and the log's size.

The blade I am using is Highland Woodworking's Woodturner's 3/8" Bandsaw Blade (105" length).  The jig is aligned with the blade to cut where I want it to and is squared to the fence bar which has been adjusted for drift.
I have a video of the first cut, I apoligize about the quality, I was having problems uploading the non-condensed version.  It's not the most scintillating, so I understand if you skip to the end.
video
After a flat face has been established I reference the newly cut face off a fence, in this case my regular bandsaw fence because this log isn't wide enough to need a tall resaw fence.  Note how in the beginning the log bucks a little.  This is caused by the log not resting securely on the table.  I should have flipped it around to cut from the other side, which would've been more stable.
video

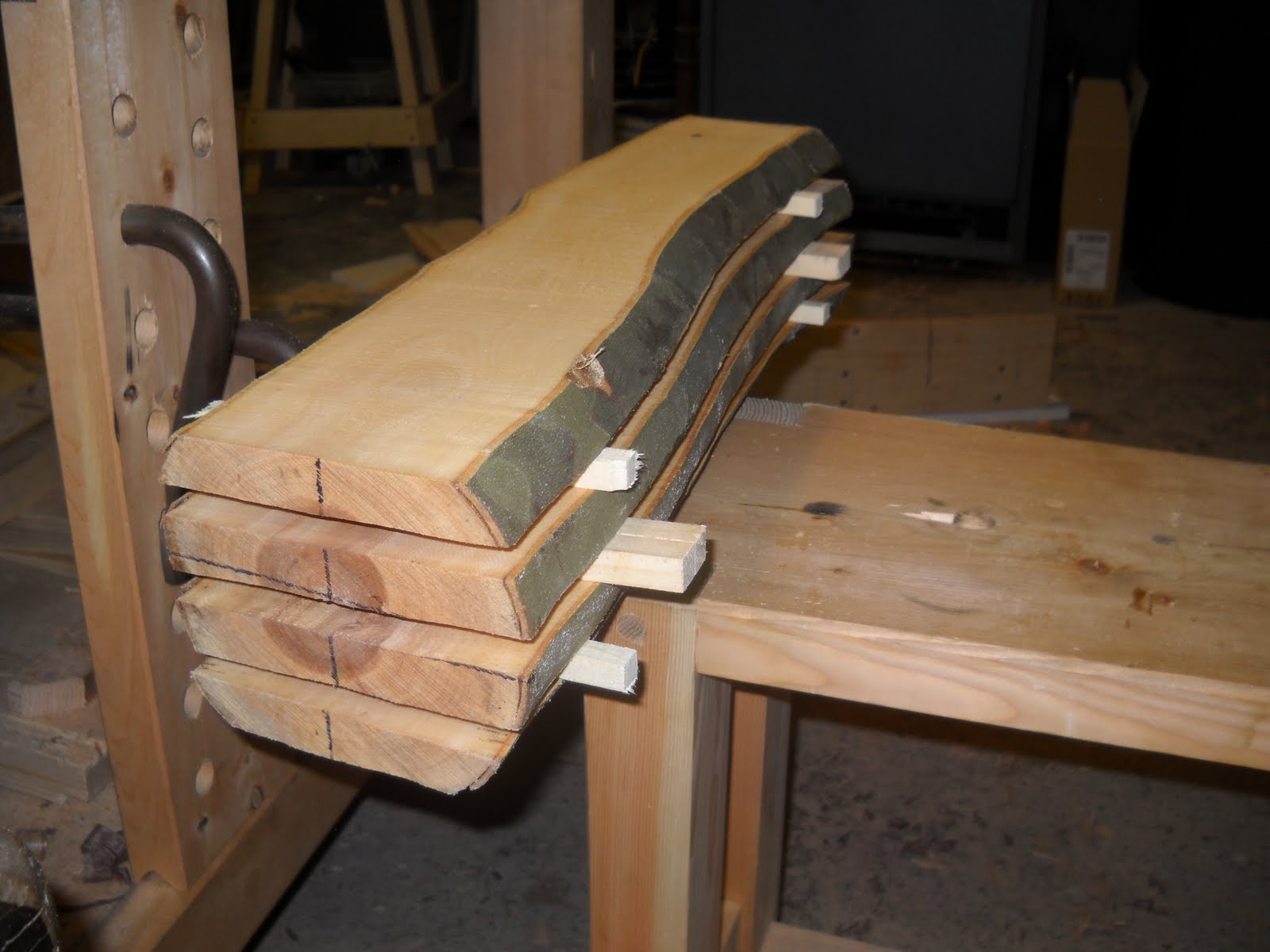

With the lumber cut I paint the ends with latex paint and sticker them for drying.  Also I was sure to clean most of the sawdust out of my saw because the wet sawdust will cause rust on unprotected parts.  Even from this small of a log quite a bit of sawdust was made.
